piPATCH-IoT/FM (Flight Model)

piPATCH-IoT

Space-Friendly™ All Band IoT Antenna.

Get maximum data transfer out of your tunable IoT (Internet of Things) Radiomodem Chipset onboard! Enable a new level of data harvesting and bidirectional communication!

Are you looking for a high-gain CubeSat All Band IoT Antenna covering majority of terrestrial IoT services working on various coordinated frequencies? The piPATCH-IoT covers 868 and 915 MHz and related bands via dedicated antenna array connected to the radiomodem via single RF port.



TOP Ceramics. | Maximum Reach.

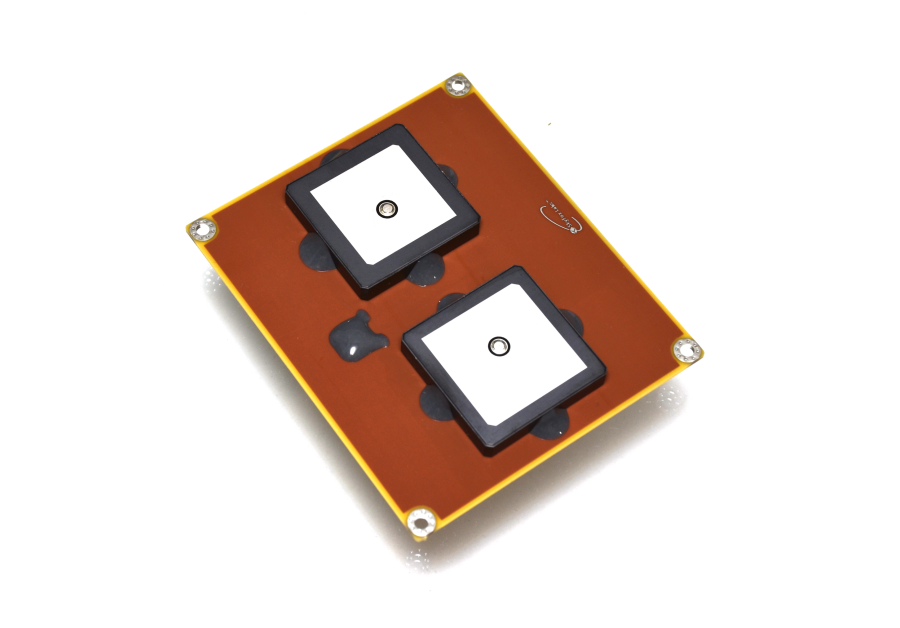

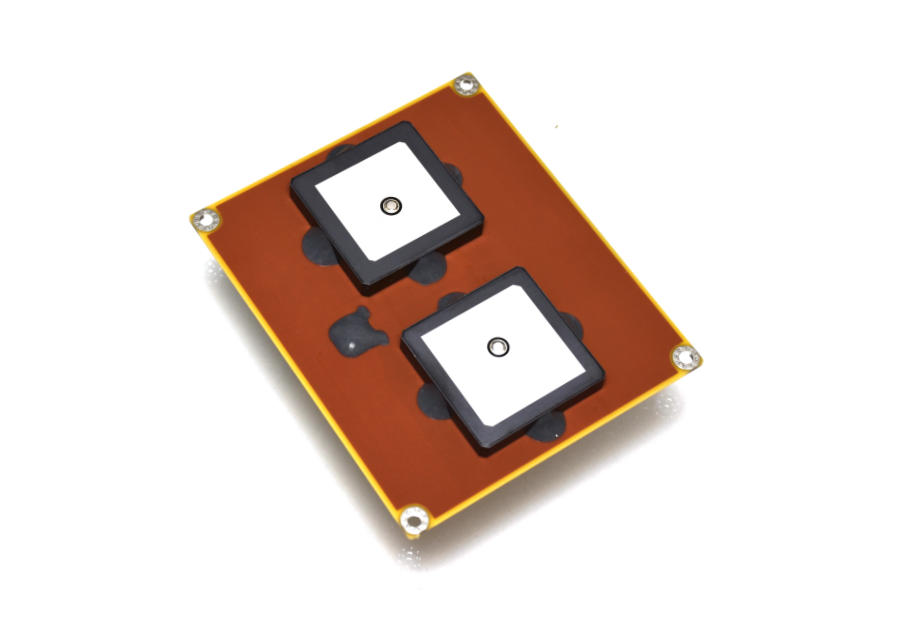

The piPATCH-IoT is a Top Notch, High Gain RHCP (Right Hand Circular Polarization) Antenna with Wide RF Coverage and uniform hemispherical radiation pattern intended for a X/Y +/- CubeSat walls. The antenna is ideal for Nadir/Zenith oriented satellites such as ground-scanning telescope missions, ensuring the orientation towards the terrestrial sources with a X/Y-face.



All Bands: Europe | USA | Australia



The module size 98x82.6 mm and low profile is ideal for standard CubeSat structure envelopes with at least 10+ mm side wall gaps (protrusion from rail margins). Cover the IoT from your satellite platform Globally using Single Antenna Unit!



Part Number: piPATCH-IoT/FM (Flight Model)



Product Summary

  • All Band CubeSat IoT/ISM/LoRA/SigFox Antenna
  • Majority of IoT covered Countries Globally
  • Full Band 868 MHz (center)
  • Full Band 915 MHz (center)
  • Single RF Port for TX and RX
  • Allow use of Single tunable RF Modem with Single RF Port
  • Dimensions: 98x82.6x(+7)/(-4) mm, low profile, MCX-F connector
  • Mass: 70 grams (excluding mounting screws)
  • Fits all known CubeSat structures (ideal for X/Y +/- mount) and at least 10+ mm CubeSat Protrusion Deployers
  • Mounting hole position modification FREE on Request
  • Up to 5W RF output power
  • RF Coupler, EMI shielding



  • Dual Use Goods: YES
  • HS Code: 8529.10.69
  • Lead Time: 2-4 Weeks + Shipping
  • Country of Origin: Czech Republic



Pricing (EUR)

Qty.  Unit Price  Ext. Price​
1:    1490 €      1490 €
2:    1290 €      2580 €
3+:   1080 €      3240 €

Want this for your project? → Contact us.

Price: 1490 EUR
